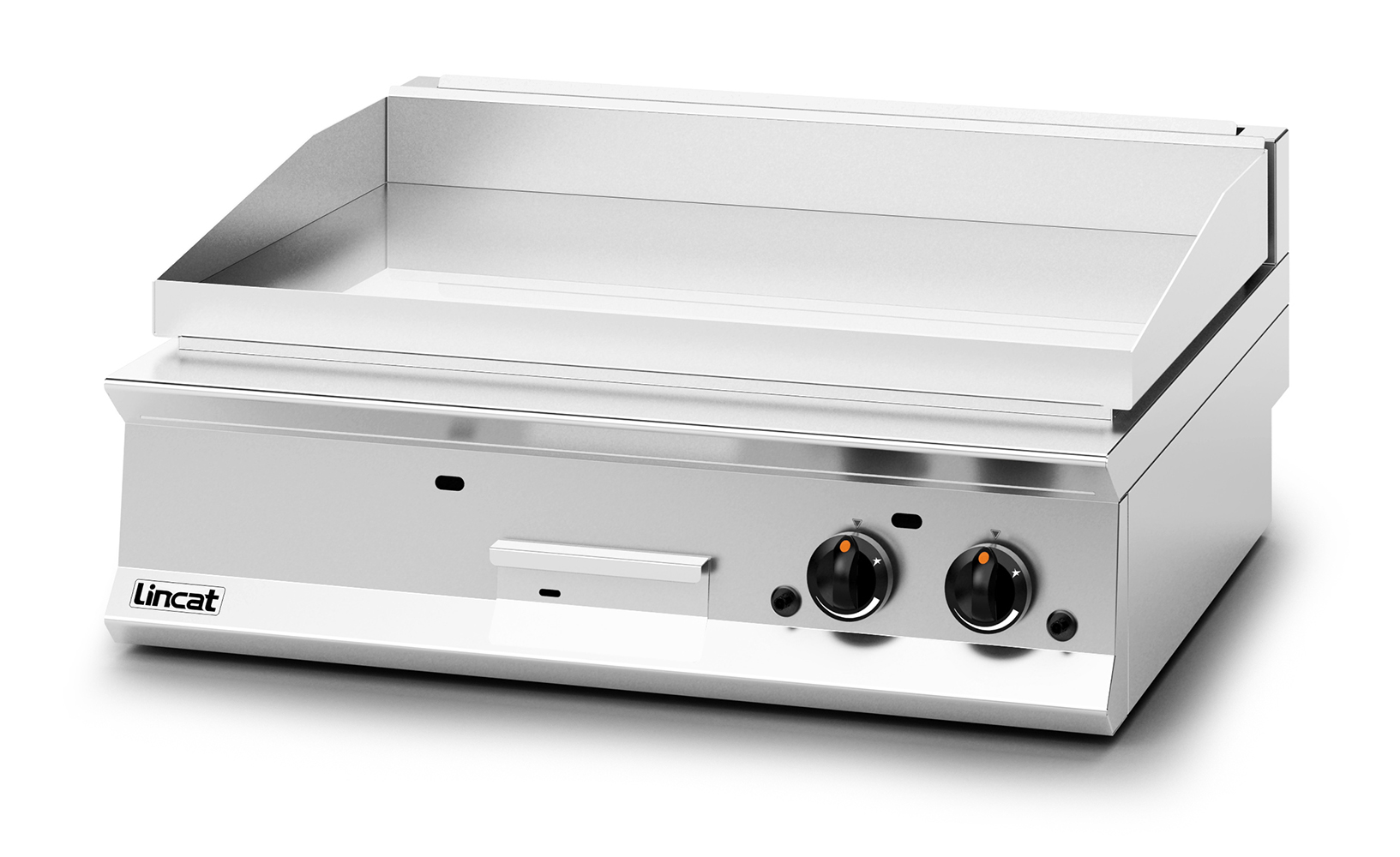

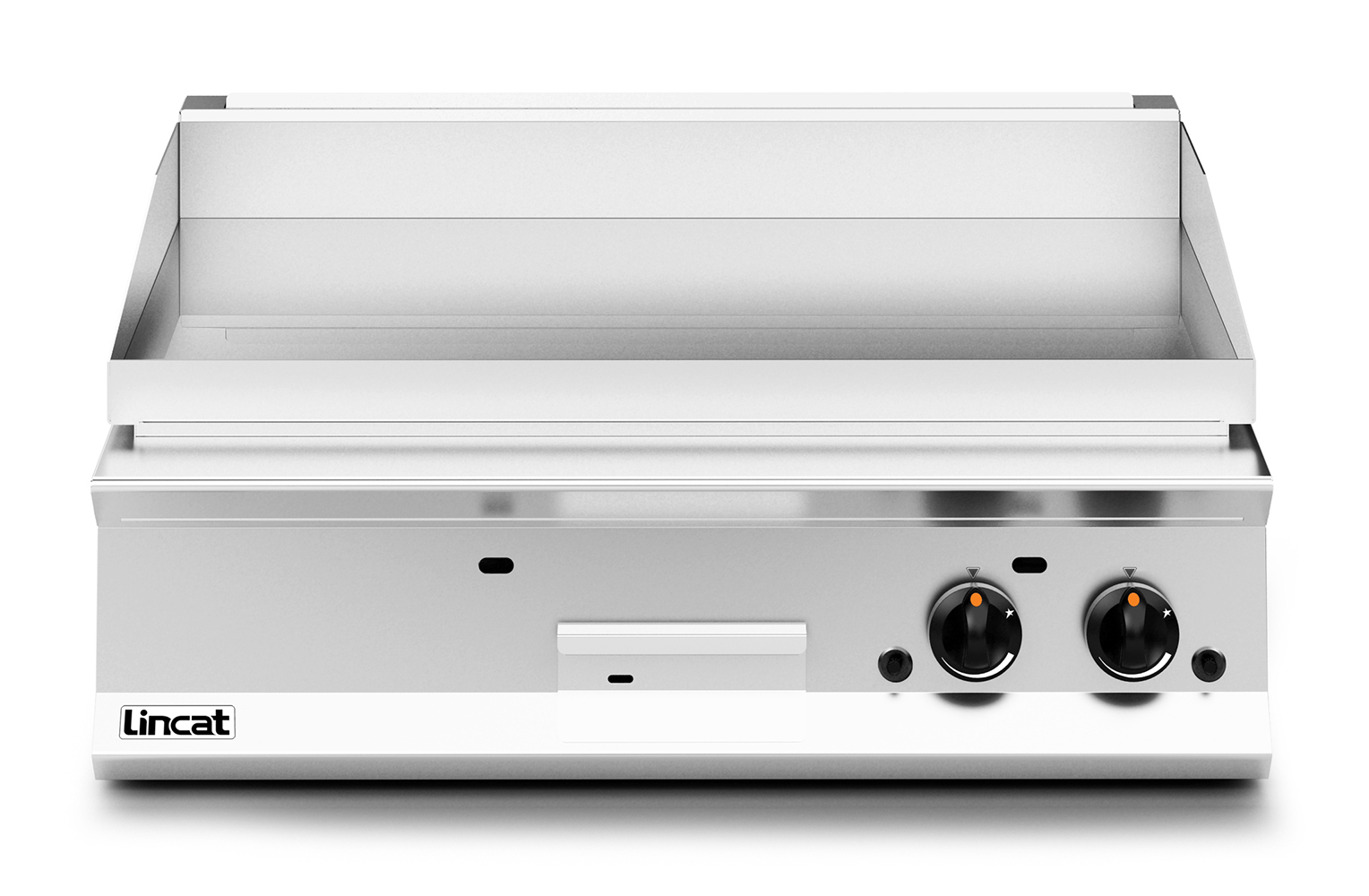

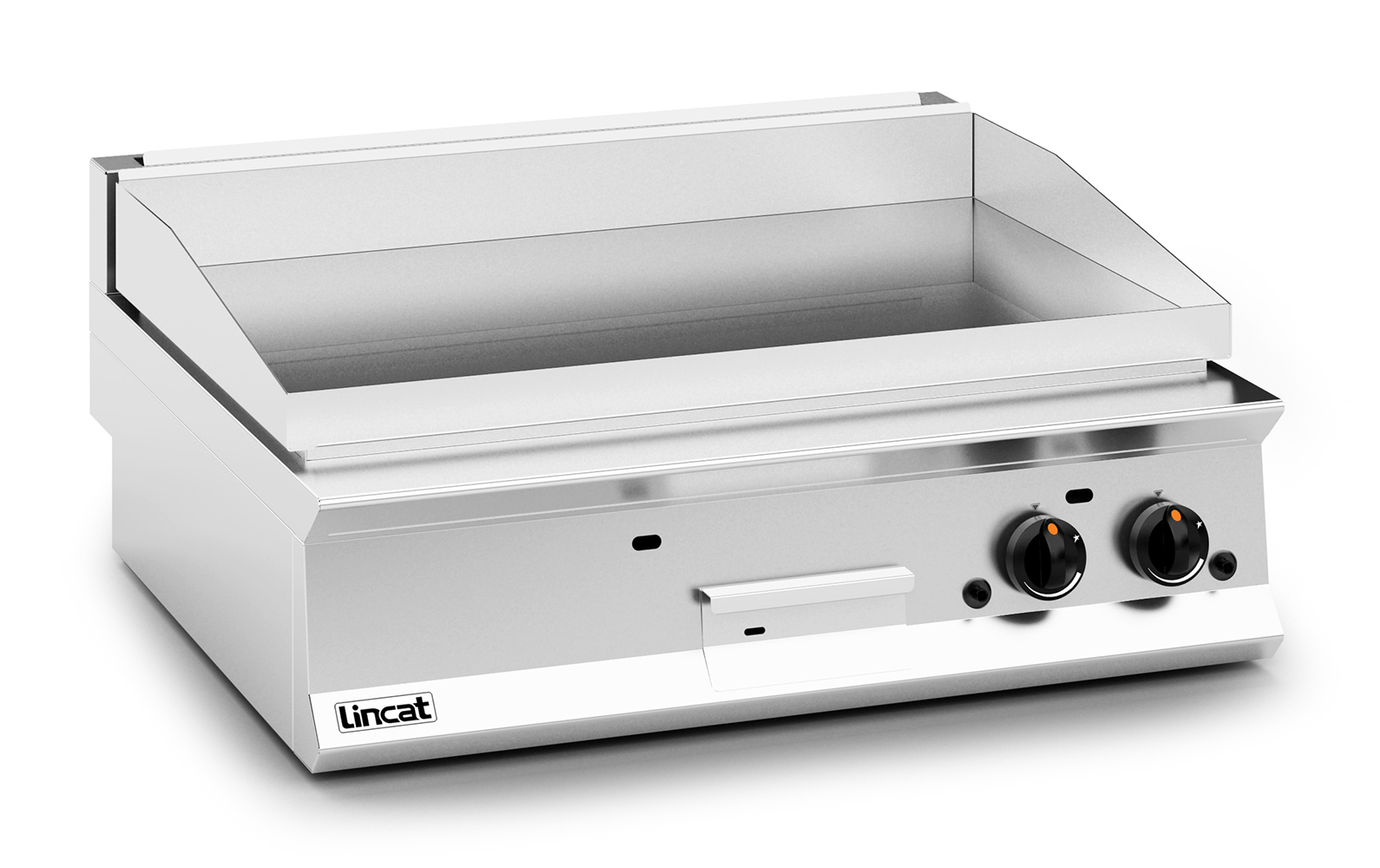

OG8202/C/P - Lincat Opus 800 Propane Gas Counter-top Griddle - Chrome Plate - W 900 mm - 23.0 kW
Designed for quality cooking at speed, the Opus 800 Gas Chrome Griddle heats up quicker than standard griddles with less energy loss as well as reduced energy radiation, keeping the kitchen cooler for staff and reducing pressure on the ventilation system.
Features & Benefits Overview
- Chrome surface heats up quicker than standard griddles with less energy loss as well as reduced energy radiation, keeping the kitchen cooler for staff and reducing pressure on the ventilation system
- Transfers heat to food more efficiently than a standard griddle
- Two separately controlled heat zones give you the option of operating either zone independently to provide a smaller cooking area during quiet periods as well as offering versatility when cooking two separate meals simultaneously
- Convenient piezo ignition and pilot Burners for stand-by operation
- Flame failure protection
Full Description
Designed for quality cooking at speed, the Opus 800 Gas Chrome Griddle heats up quicker than standard griddles with less energy loss as well as reduced energy radiation, keeping the kitchen cooler for staff and reducing pressure on the ventilation system. Heat is transfered more efficiently than with a standard griddle, while the chrome griddle also comes with two separately controlled heat zones, which allow for the versatility of operating either zone independently when cooking two separate meals simultaneously. Perfect for any busy commercial kitchen, the griddle also comes with convenient piezo ignition, pilot burners for stand-by operation, and flame failure protection for added safety.
Add on Items
If you wish to purchase additional items, we have an excellent range of model specific add on items that are guaranteed to work with this product. Feel free to select an item from the available options below.
Specifications
Summary | |
---|---|
Brand | Lincat |
Range | Opus 800 |
Power Type | Gas |
Gas Type | Propane Gas |
Unit Type | Counter-top |
Available in UK Only | No |
UK Warranty | 2 Years Parts and Labour Warranty |
Export Warranty | Contact your local dealer |
GTIN | 5056105102755 |
Power and Performance | |
BTU per Hour | 78,476 |
Total Power kW | 23.0 |
Temperature Range °C | 90-280 |
Cooking Area (Width x Depth) mm | 890 x 600 |
Temperature Control | Mechanical |
Key Specifications | |
Number of Heat Zones | 2 |
Grill Plate Surface Type | Smooth |
Grill Plate Material | Chrome |
Capacity | |
Product Output per Hour | 160 x 225g [8oz] steaks [chilled] |
Weights and Dimensions | |
Unit Height (External) mm | 532 |
Unit Width (External) mm | 900 |
Unit Depth (External) mm | 800 |
Net Weight Kg | 108 |
Supply Connections | |
Requires Installation | Yes |
Requires Electrical Supply | No |
Gas Connection BSP | 1/2" |
Gas Consumption at full rate Propane m³ per Hour | 1.64 |
Gas Pressure Propane mbar | 37.0 |
Total heat input at full rate Propane kW | 23.0 |
Total heat input at full rate Propane BTU per hour | 23.0 |
Shipping | |
Packed Weight Kg | 118.8 |
Packed Height cm | 63 |
Packed Width cm | 100 |
Packed Depth cm | 85 |
Documents & Downloads
For more information on this product, please click on the specific link below to download the required documentation.
Specification Sheet Product Manual Technical Picture CAD/BIM Models
