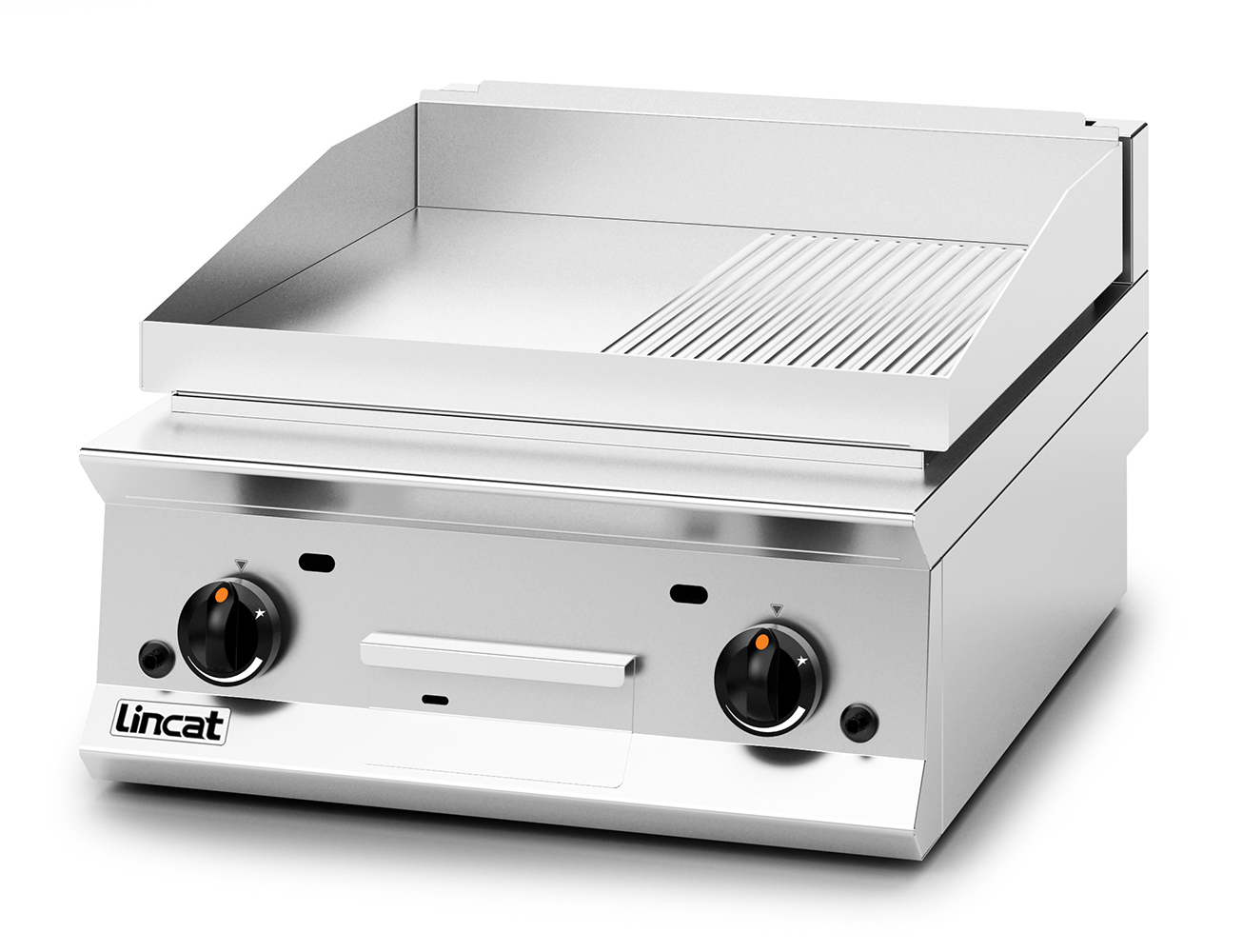

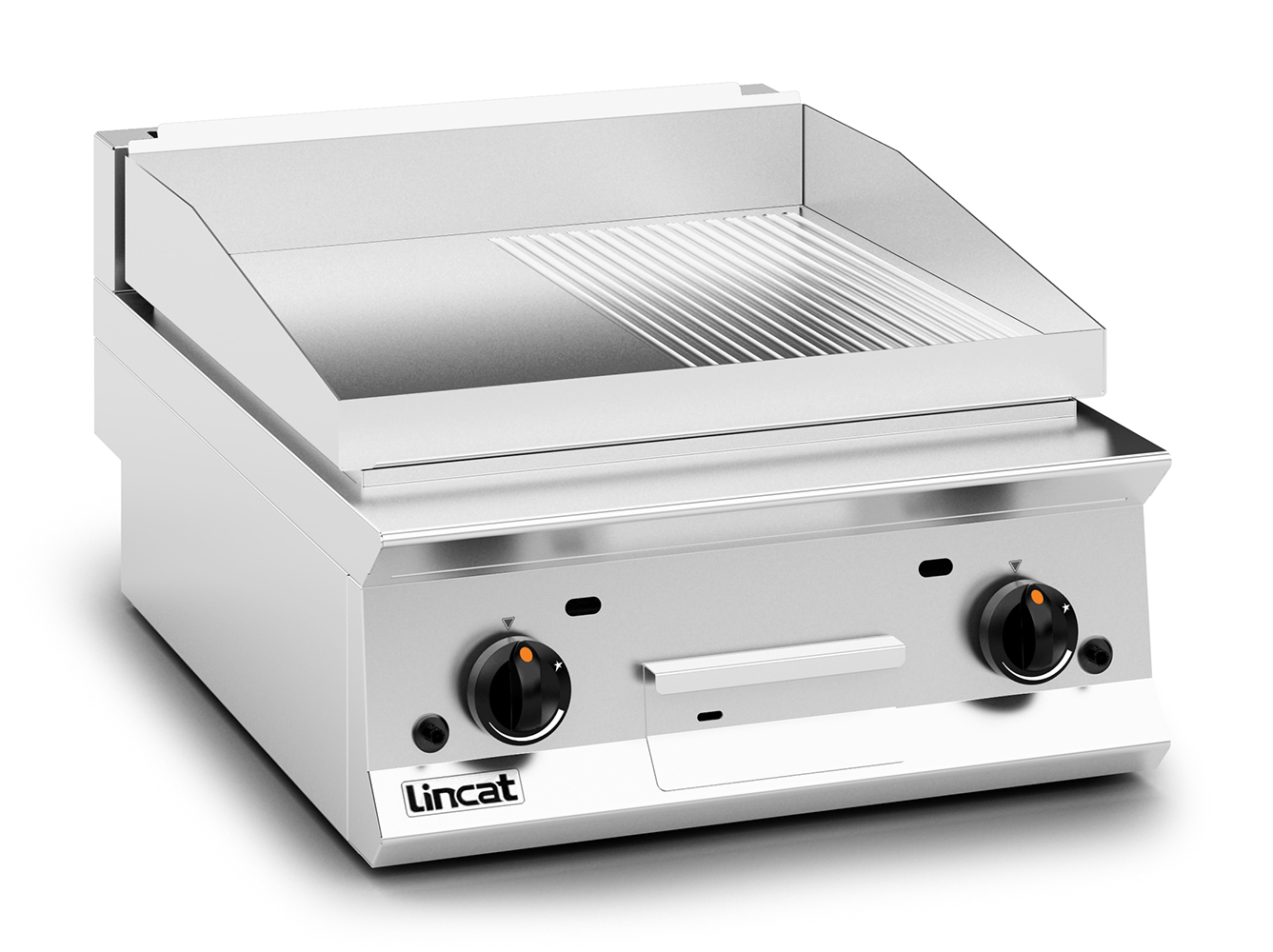

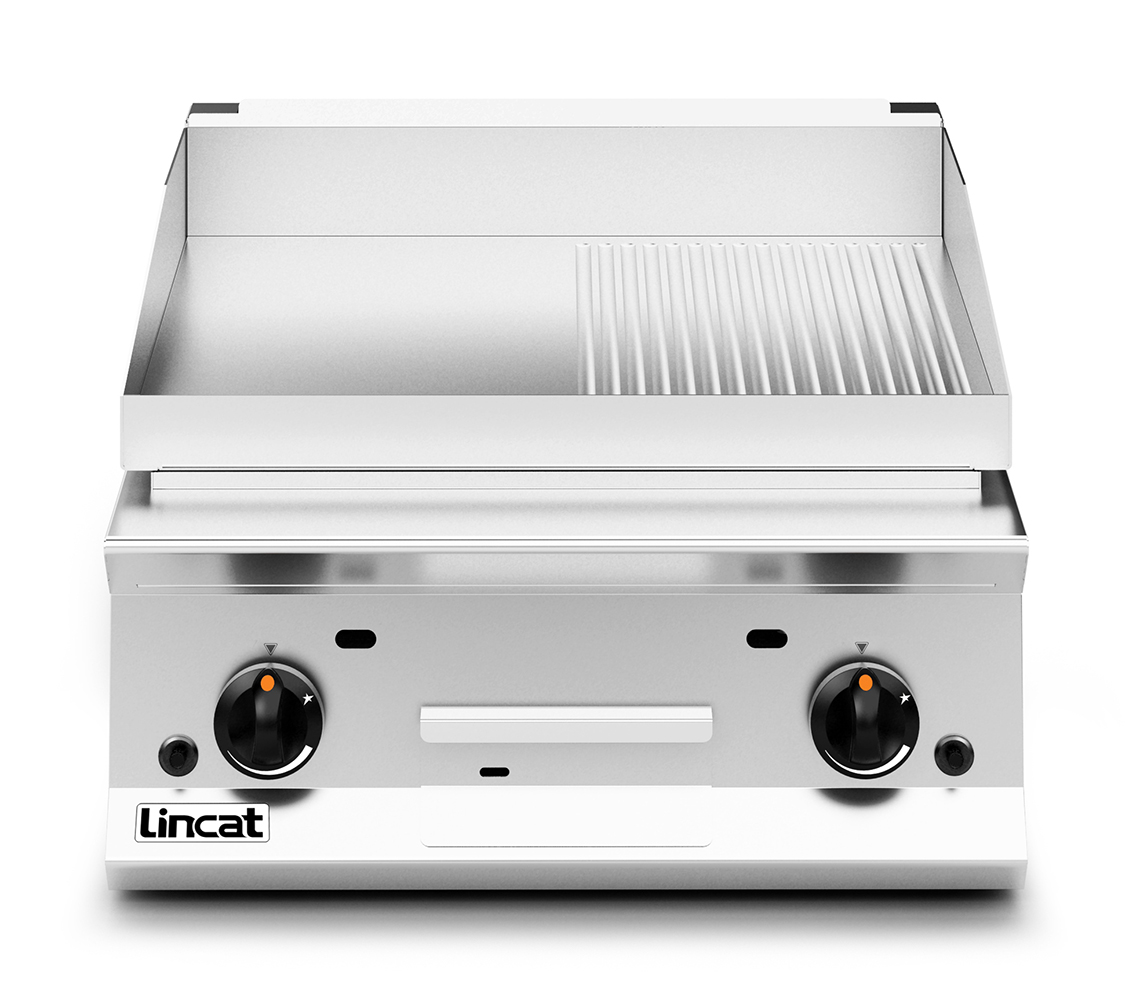

OG8201/R/P - Lincat Opus 800 Propane Gas Counter-top Griddle - Ribbed Plate - W 600 mm - 15.5 kW

With a half ribbed plate option for attractive branding presentation marks, the Opus 800 Gas Ribbed Plate Griddle is designed to create appetizing food accurately.

Features & Benefits Overview

  • Half ribbed plate option for attractive branding presentation marks
  • Maximised cooking area, griddle plates sit flush to the sides of the unit
  • Precise thermostatic control up to 300°C for consistent results and economical operation
  • Convenient piezo ignition and pilot Burners for stand-by operation
  • Flame failure protection


Full Description

With a half ribbed plate option for attractive branding presentation marks, the Opus 800 Gas Ribbed Plate Griddle is designed to create appetizing food accurately. The griddle comes with an accurate thermostatic control up to 300°C for consistent results and an economical operation. Perfect for any busy commercial kitchen, it utilizes a maximised cooking area, with the griddle plates to the sides of the unit. Built for safety, the griddle also comes with convenient piezo ignition and pilot burners for stand-by operation, as well as flame failure protection.

Less


Add on Items

If you wish to purchase additional items, we have an excellent range of model specific add on items that are guaranteed to work with this product. Feel free to select an item from the available options below.

MinimiseAvailable ‘Add-On Items’ for Lincat Opus 800 Propane Gas Counter-top Griddle - Ribbed Plate - W 600 mm - 15.5 kW

Caterflex Hose 1/2" - 1 Metre - for use with units up to 66,000 BTU

Caterflex Hose 1/2" - 1 Metre - for use with units up to 66,000 BTU

CH01
Caterflex Hose 1/2" - 1.5 Metre - for use with units up to 56,000 BTU

Caterflex Hose 1/2" - 1.5 Metre - for use with units up to 56,000 BTU

CH02
Lincat Opus 800 Free-standing Floor Stand with Legs - for units W 600 mm

Lincat Opus 800 Free-standing Floor Stand with Legs - for units W 600 mm

OA8917
Lincat Opus 800 Free-standing Floor Stand with Castors - for units W 600 mm

Lincat Opus 800 Free-standing Floor Stand with Castors - for units W 600 mm

OA8917/C
Lincat Opus 800 Free-standing Pedestal with Doors and Legs - for units W 600 mm

Lincat Opus 800 Free-standing Pedestal with Doors and Legs - for units W 600 mm

OA8972
Lincat Opus 800 Free-standing Pedestal with Doors and Castors - for units W 600 mm

Lincat Opus 800 Free-standing Pedestal with Doors and Castors - for units W 600 mm

OA8972/C
Less


Specifications

Below you find the product specifications and technical details for our product Lincat Opus 800 Propane Gas Counter-top Griddle - Ribbed Plate - W 600 mm - 15.5 kW.
Summary
Brand Lincat
Range Opus 800
Power Type Gas
Gas Type Propane Gas
Unit Type Counter-top
Available in UK Only No
UK Warranty 2 Years Parts and Labour Warranty
Export Warranty Contact your local dealer
GTIN 5056105102700

Power and Performance
BTU per Hour 52,886
Total Power kW 15.5
Temperature Range °C 90-280
Cooking Area (Width x Depth) mm 590 x 600
Temperature Control Mechanical

Key Specifications
Number of Heat Zones 2
Grill Plate Surface Type Half-ribbed
Grill Plate Material Steel

Capacity
Product Output per Hour 96 x 225g [8oz] steaks [chilled]

Weights and Dimensions
Unit Height (External) mm 532
Unit Width (External) mm 600
Unit Depth (External) mm 800
Net Weight Kg 76.5

Supply Connections
Requires Installation Yes
Requires Electrical Supply No
Gas Connection BSP 1/2"
Gas Consumption at full rate Propane m³ per Hour 1.11
Gas Pressure Propane mbar 37.0
Total heat input at full rate Propane kW 15.5
Total heat input at full rate Propane BTU per hour 15.5

Shipping
Packed Weight Kg 89.5
Packed Height cm 63
Packed Width cm 70
Packed Depth cm 85

Less


Documents & Downloads

For more information on this product, please click on the specific link below to download the required documentation.

Specification Sheet   Product Manual   Technical Picture   CAD/BIM Models

Less


Spare Parts

Find spare part for your product:

Click here
Less
