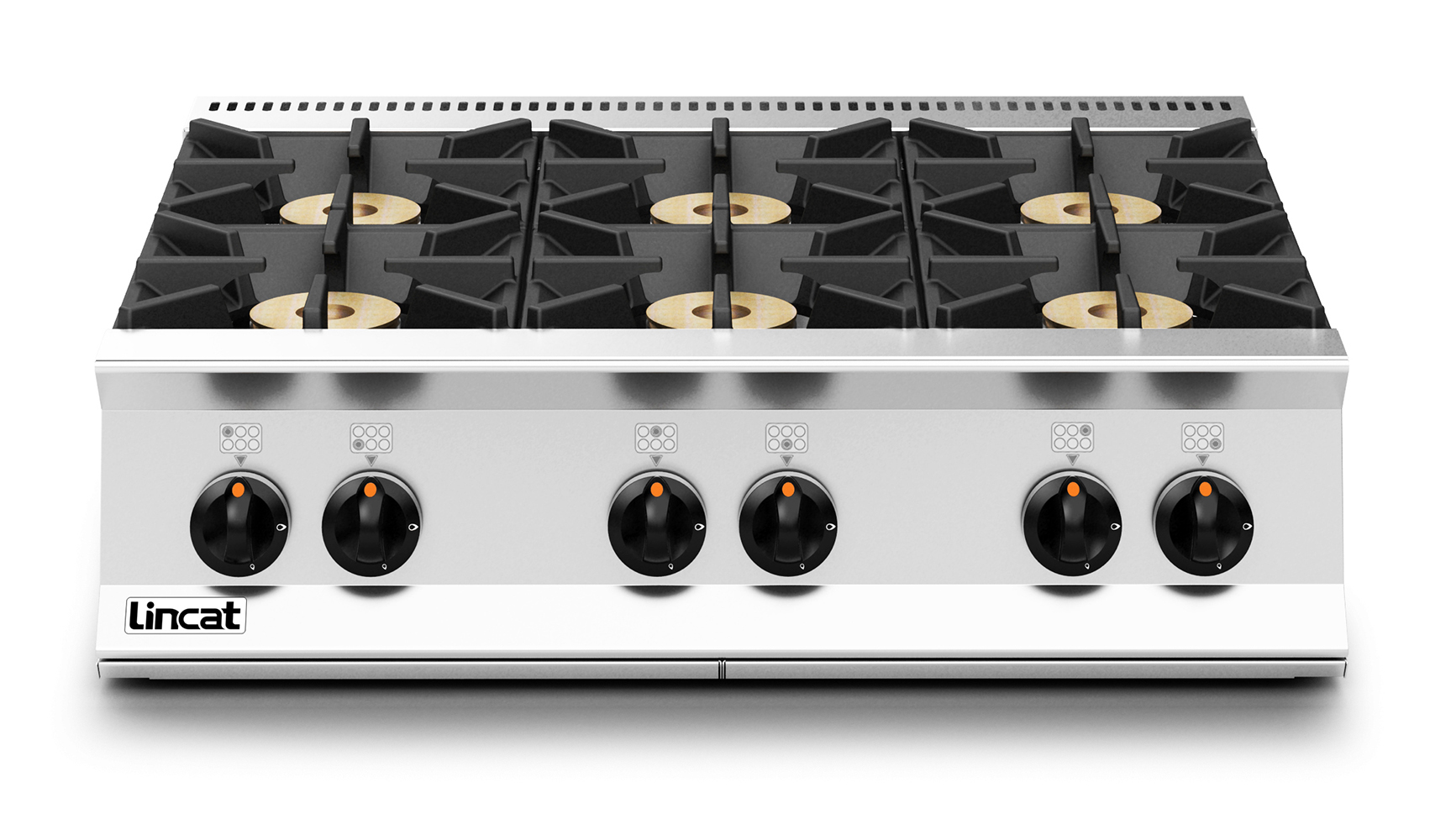

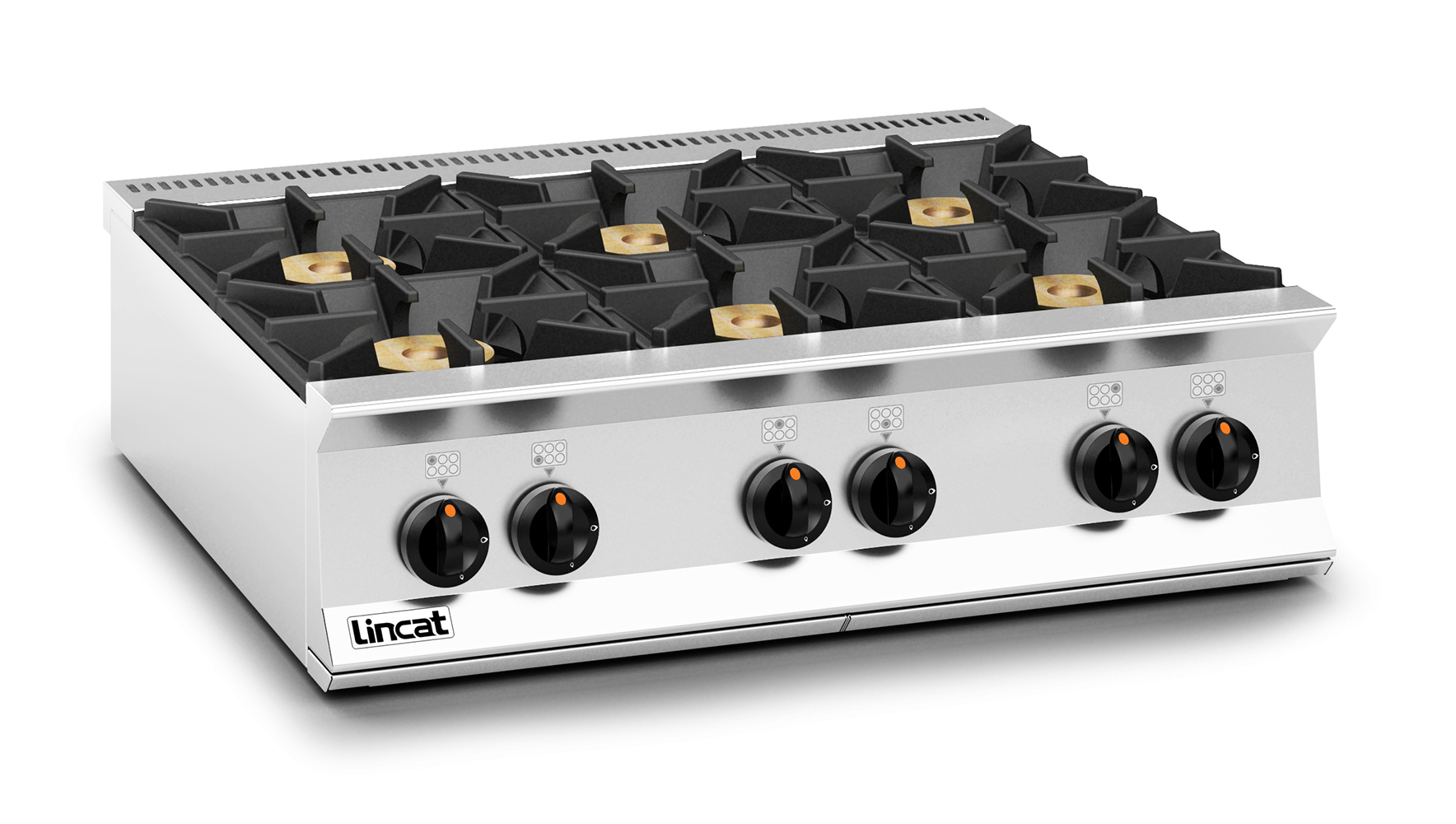

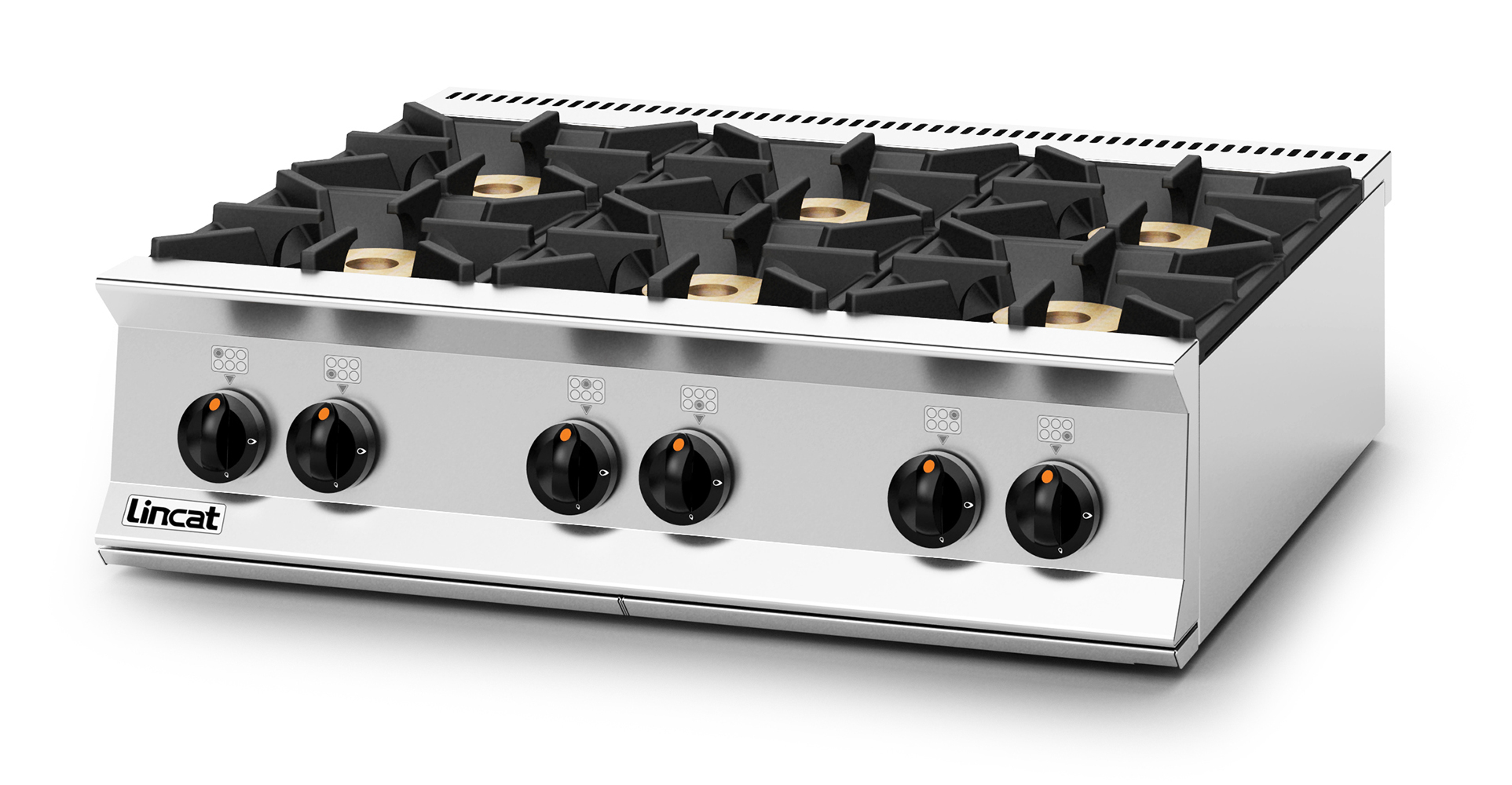

OG8004/P - Lincat Opus 800 Propane Gas Counter-top Boiling Top - W 900 mm - 40.8 kW

Perfect for large pubs and restaurants, school canteens, care homes and hospitals, the Opus 800 Gas 6 x Boiling Top comes with individual heavy-duty single cast iron supports, which are built to withstand the rigours of the busiest kitchen.

Features & Benefits Overview

  • Powerful 7.5kW dual concentric Burners for focused heat distribution from a fast boil to a low simmer
  • Individual heavy-duty single cast iron supports, built to withstand the rigours of the busiest kitchen
  • Low flue to allow use of the complete hob top
  • Gas Boiling Tops


Full Description

Perfect for large pubs and restaurants, school canteens, care homes and hospitals, the Opus 800 Gas 6 x Boiling Top comes with individual heavy-duty single cast iron supports, which are built to withstand the rigours of the busiest kitchen. With powerful 7.5kW dual concentric burners designed for focused heat distribution from a fast boil to a low simmer, you'll be cooking fabulous dishes in no time at all. The Boiling Top also features a low flue to allow use of the complete hob top.

Less


Add on Items

If you wish to purchase additional items, we have an excellent range of model specific add on items that are guaranteed to work with this product. Feel free to select an item from the available options below.

MinimiseAvailable ‘Add-On Items’ for Lincat Opus 800 Propane Gas Counter-top Boiling Top - W 900 mm - 40.8 kW

Lincat Opus 800 Free-standing Floor Stand with Legs - for units W 900 mm

Lincat Opus 800 Free-standing Floor Stand with Legs - for units W 900 mm

OA8914
Lincat Opus 800 Free-standing Floor Stand with Castors - for units W 900 mm

Lincat Opus 800 Free-standing Floor Stand with Castors - for units W 900 mm

OA8914/C
Lincat Opus 800 Free-standing Pedestal with Doors and Legs - for units W 900 mm

Lincat Opus 800 Free-standing Pedestal with Doors and Legs - for units W 900 mm

OA8973
Lincat Opus 800 Free-standing Pedestal with Doors and Castors - for units W 900 mm

Lincat Opus 800 Free-standing Pedestal with Doors and Castors - for units W 900 mm

OA8973/C
Less


Specifications

Below you find the product specifications and technical details for our product Lincat Opus 800 Propane Gas Counter-top Boiling Top - W 900 mm - 40.8 kW.
Summary
Brand Lincat
Range Opus 800
Power Type Gas
Gas Type Propane Gas
Unit Type Counter-top
Available in UK Only No
UK Warranty 2 Years Parts and Labour Warranty
Export Warranty Contact your local dealer
GTIN 5056105102274

Power and Performance
BTU per Hour 139,210
Total Power kW 40.8
Temperature Control Mechanical
Rating per Hob kW 6.8

Key Specifications
Number of Hobs 6

Weights and Dimensions
Unit Height (External) mm 412
Unit Width (External) mm 900
Unit Depth (External) mm 800
Net Weight Kg 75

Supply Connections
Requires Installation Yes
Requires Electrical Supply No
Gas Connection BSP 3/4"
Gas Consumption at full rate Propane m³ per Hour 2.92
Gas Pressure Propane mbar 37
Total heat input at full rate Propane kW 40.2
Total heat input at full rate Propane BTU per hour 137,168

Shipping
Packed Weight Kg 82.5
Packed Height cm 64
Packed Width cm 70
Packed Depth cm 85

Less


Documents & Downloads

For more information on this product, please click on the specific link below to download the required documentation.

Specification Sheet   Product Manual   Technical Picture   CAD/BIM Models

Less


Spare Parts

Find spare part for your product:

Click here
Less
