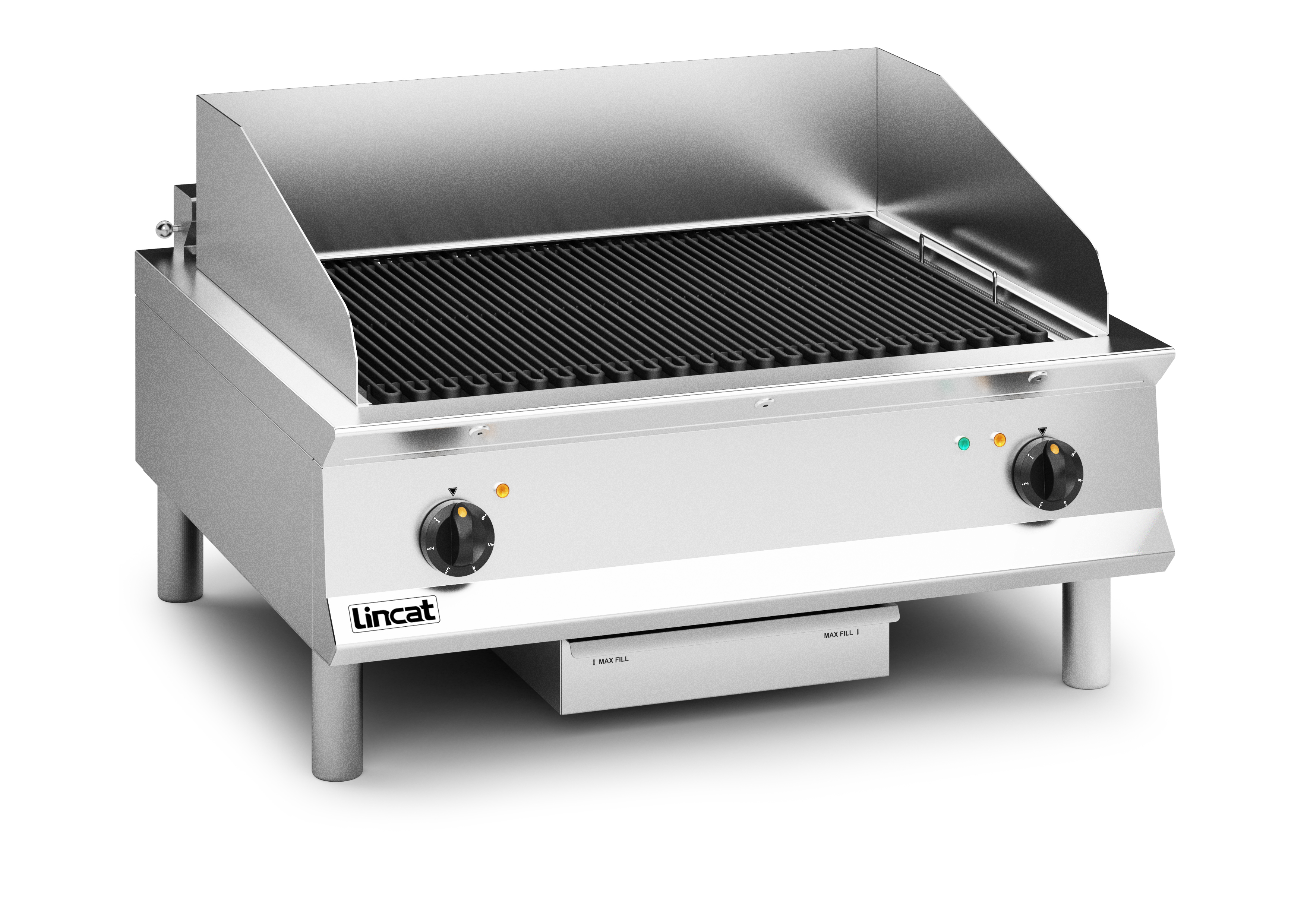

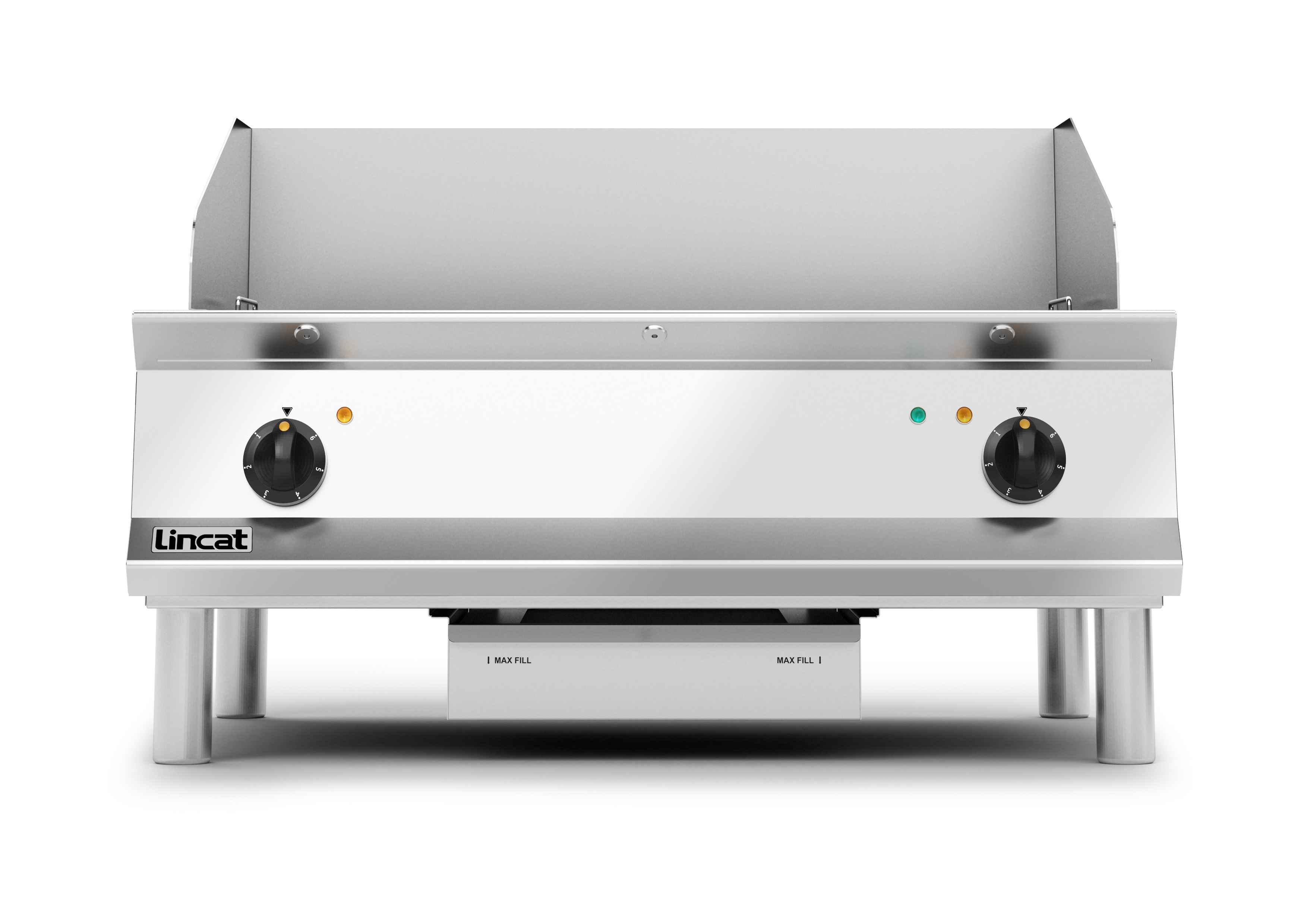

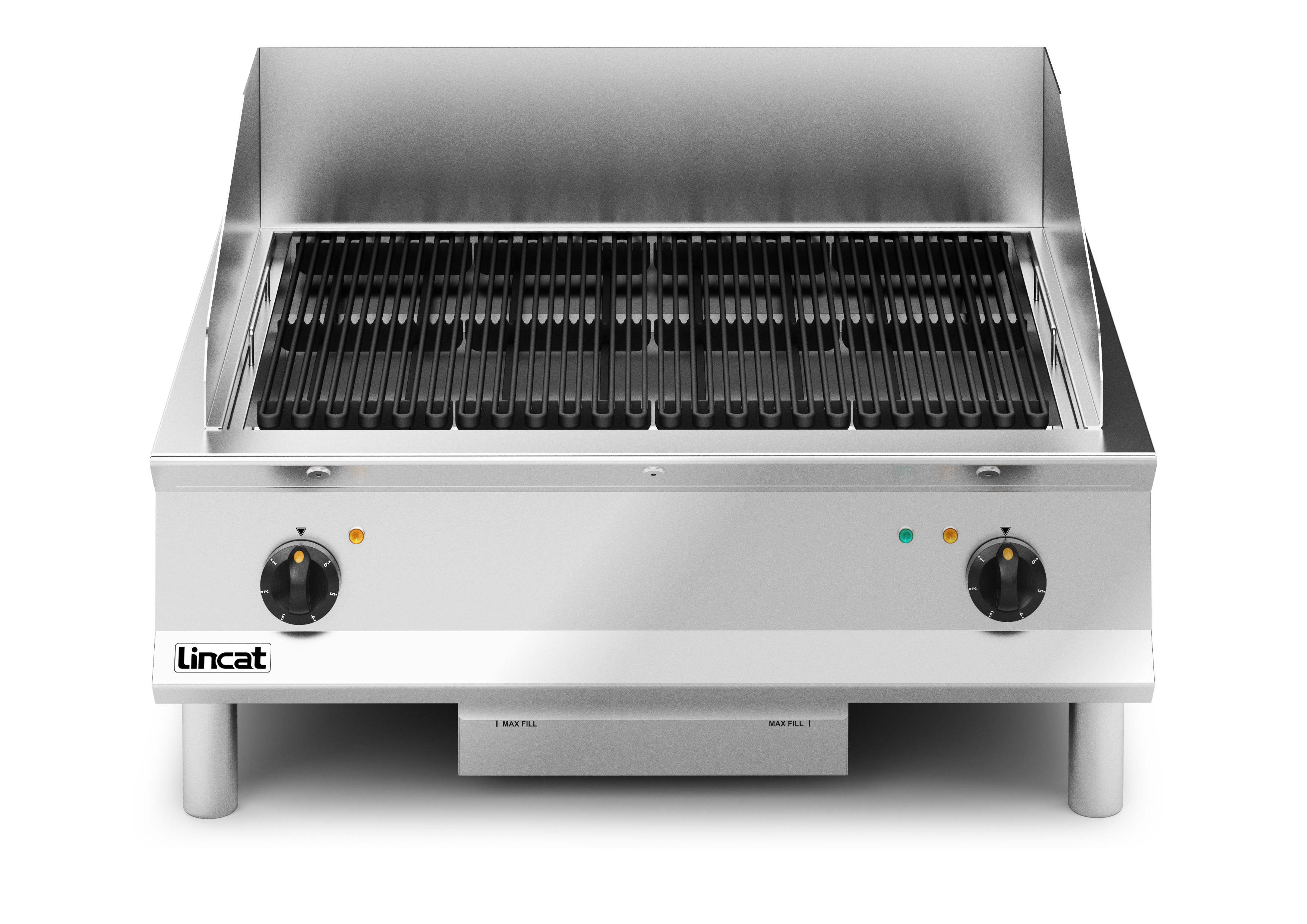

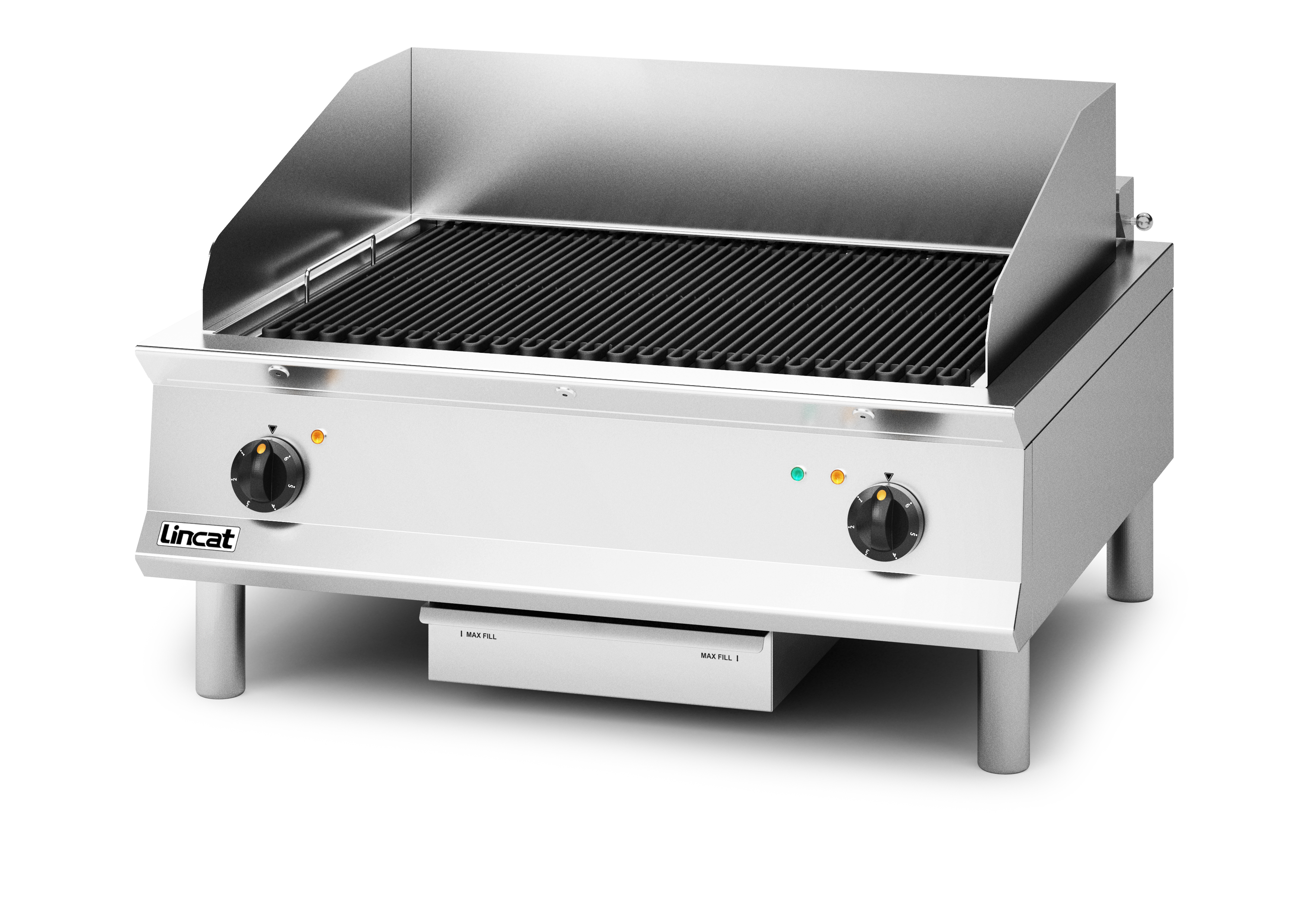

OE8414 - Opus Electric Counter-top Direct Cook Chargrill – W 900 mm – 13.44 kW

Product Model :

Lincat (SKU: OE8414) Opus Electric Counter-top Direct Cook Chargrill - W 900 mm - 13.44 kW

OE8414 - Opus Electric Counter-top Direct Cook Chargrill – W 900 mm – 13.44 kW

Product Model :

Lincat (SKU: OE8414) Opus Electric Counter-top Direct Cook Chargrill - W 900 mm - 13.44 kW

Features & Benefits Overview

  • Food cooked directly on elements, so no need for separate branding bars
  • Powerful elements with rapid heat up
  • Two heat zones with separate controls
  • Removable tank liner for easy cleaning
  • Consistent temperature across whole cooking area
  • Temperature range from 90°C to 400°C

Full Description

With the Opus 800 Direct Cook Electric Chargrill, cook directly on the powerful elements to create succulent food with a perfectly branded appearance, without the need for separate branding grids. With two separately controlled heat zones, only turn on as much of the 730mm wide cooking area as needed. Perfect for any busy commercial kitchen, the the fully removable tank liner, and hinged, interlocking elements make cleaning easier.

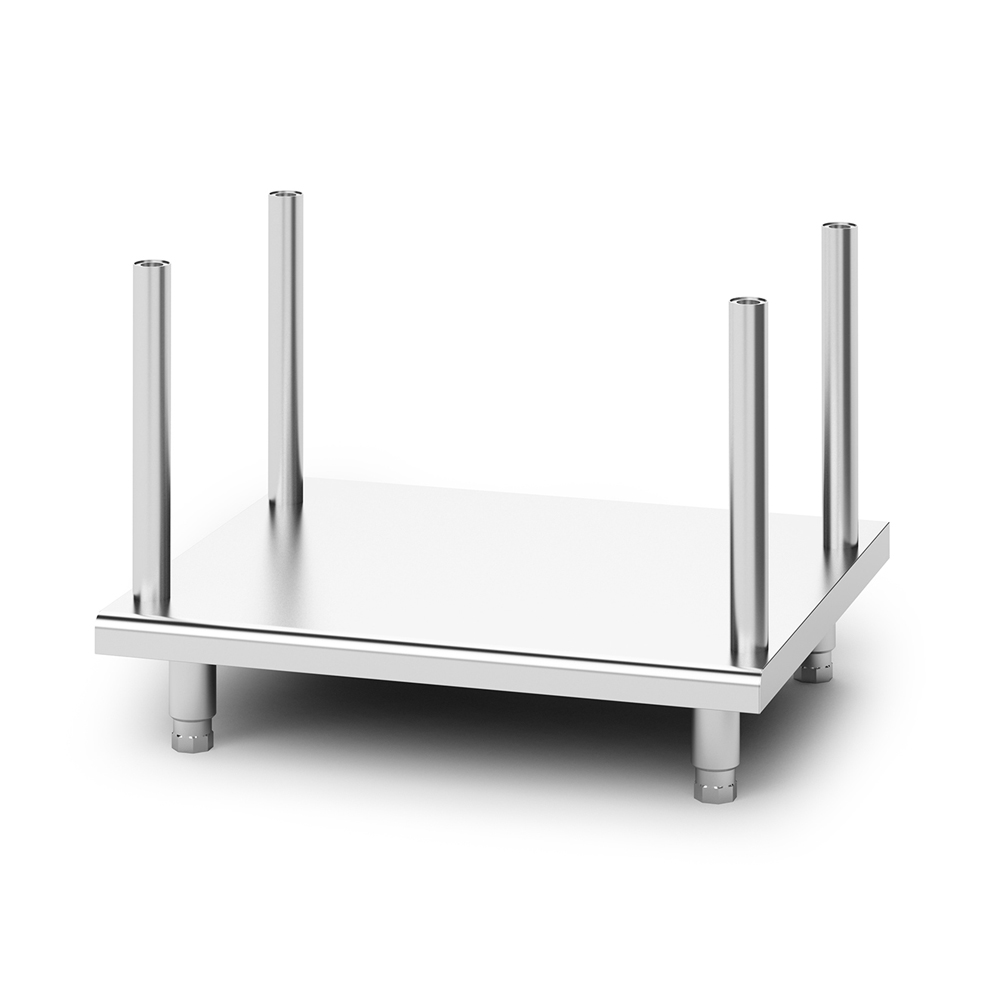

Add on Items

We have an excellent range of model specific add on items that are guaranteed to work with this product.

Available ‘Add-On Items’ for OE8414 - Opus Electric Counter-top Direct Cook Chargrill – W 900 mm – 13.44 kW

Specifications

Here you find the product specifications and technical details for our product Opus Electric Counter-top Direct Cook Chargrill – W 900 mm – 13.44 kW

Energy Type

Electric

Installation Type

Countertop

European Article Number EAN

5056105118350

Kilowatts

13.40

Temperature Minimum (°C)

90

Temperature Maximum (°C)

400

Cooking Area Plate Width (millimeter)

730

Cooking Area Plate Depth (millimeter)

440

Control Type

Rotary Control Knob

Product Height (millimeter)

592.00 MILLIMETER

Product Width (millimeter)

900.00 MILLIMETER

Product Depth (millimeter)

800.00 MILLIMETER

Product Weight (kilogram)

78

Professional Installation Required

Yes

Electrical Watts

13,440

Electrical Phase

Three

Electrical Amps

L1=15; L2=22; L3=22

Electrical Voltage

400V

Ship Weight (kilogram)

86.35

Ship Height (centimeter)

75

Ship Width (centimeter)

100

Ship Depth (centimeter)

85

Water Line Required

False

Drain Line Required

False

Drip Pan

False

Documents & Downloads

For more information on this product, please click on the specific link below to download the required documentation.

Lincat_OE8414_AutomatedSpecSheet
Lincat Opus800Range DCChargrills Manual 1
Technical Picture
OE8414 DWG
OE8414 REVIT
