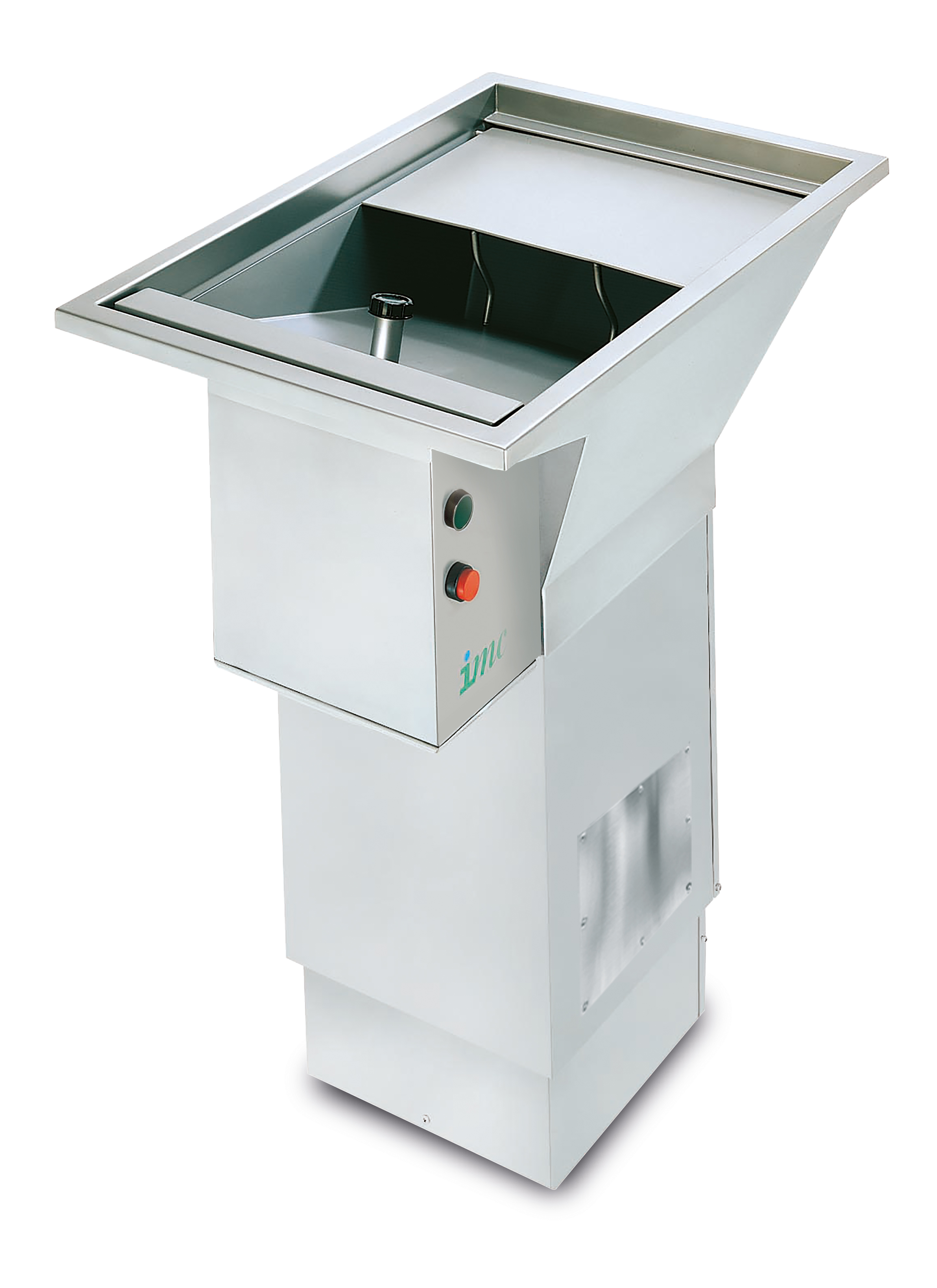

F54/727 - Vulture 1604 Floor-mounted Food Waste Disposer – 3 Phase [4 wire] [air break] – W 514 mm – 4.0 kW

Product Model : F54/727

F54/727 - Reliable, efficient, safe and easy to operate, the 1604 Waste Disposer allows operators to quickly and effectively remove waste, to create a safer and

F54/727 - Vulture 1604 Floor-mounted Food Waste Disposer – 3 Phase [4 wire] [air break] – W 514 mm – 4.0 kW

Product Model : F54/727

F54/727 - Reliable, efficient, safe and easy to operate, the 1604 Waste Disposer allows operators to quickly and effectively remove waste, to create a safer and

Features & Benefits Overview

  • Fast and efficient disposal of up to 900kg of food waste per hour.
  • Handles up to 1850 covers per sitting - ideal for large kitchens.
  • For tough waste (red meat bones, cauliflower stalks and fish skins).
  • Free-standing design, but can be welded into tabling with E30/096 hopper rim.
  • Manually reversible motor to extend operational life.
  • Fitted with a with class A airbreak kit, recommended for when connecting to a mains water supply.
  • Suitable for large kitchens with three-phase, four-wire power supply.

Full Description

Fast and efficient, the 1604 Waste Disposer with airbreak enables large kitchens to remove waste quickly and simply. It is able to dispose of 900kg of food waste per hour and handles up to 1850 covers per sitting, making it ideal for larger hotels, hospitals, universities, prisons and food preparation companies.

The 1604 Waste Disposer is suitable for tough waste – red meat bones, cauliflower stalks and fish skins. The free-standing unit can be welded into tabling with a E30/096 hopper rim, making it quick and easy to load, saving staff time and labour.

With a smooth stainless steel finish, the 1604 Waste Disposer is easy to clean and also features interlocks, for enhanced operator safety. Reversible motors extend the unit’s operating life.

Add on Items

We have an excellent range of model specific add on items that are guaranteed to work with this product.

Available ‘Add-On Items’ for F54/727 - Vulture 1604 Floor-mounted Food Waste Disposer – 3 Phase [4 wire] [air break] – W 514 mm – 4.0 kW

Specifications

Here you find the product specifications and technical details for our product Vulture 1604 Floor-mounted Food Waste Disposer – 3 Phase [4 wire] [air break] – W 514 mm – 4.0 kW

Energy Type

GTIN

5056105199151

Kilowatts

4

Control Type

On/Off

Product Height (mil)

1,014

Product Width (mil)

514

Product Depth (mil)

740

Product Weight (kilogram)

85.50

Electrical Connection Type

Direct Hardwired

Electrical Watts

4000

Electrical Phase Multi

Three

Electrical Amps

8.7

Electrical Voltage

400

Ship Weight (kilogram)

94.05

Ship Height (centimeter)

105

Ship Width (centimeter)

79

Ship Depth (centimeter)

54

Water Line Required

True

Water Connection Source Type

Water Main

Water Inlet Size

22

Drain Line Required

True

Drain Outlet Size

2

Motor Power (horsepower)

5.40

Waste Types Processed

Tough (all red meat bones, cauliflower stalks, fish skins)

Waste Processing Capacity Per Hour: Weight (kilogram)

900

Meal Waste Servings Processed Per Sitting

1850

Internal Filter

False

Drip Pan

False

Operator Safety Method

Interlock
