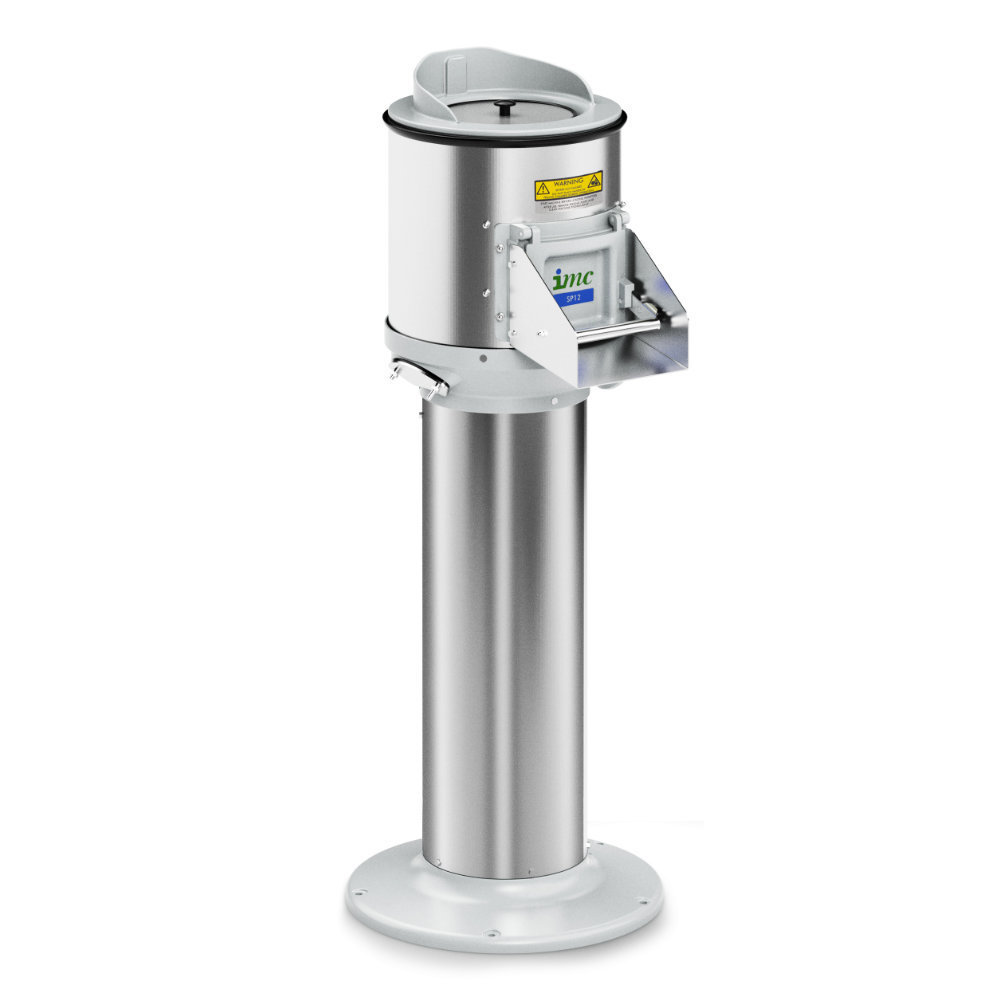

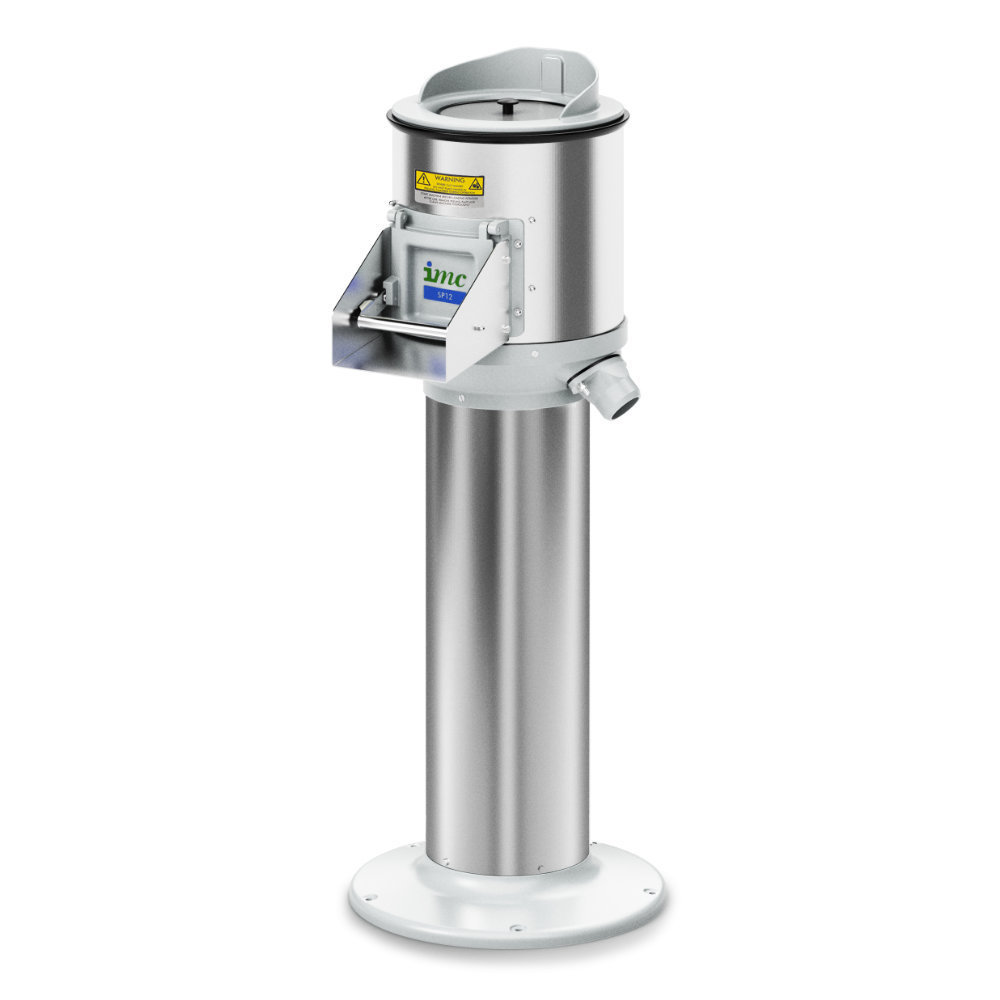

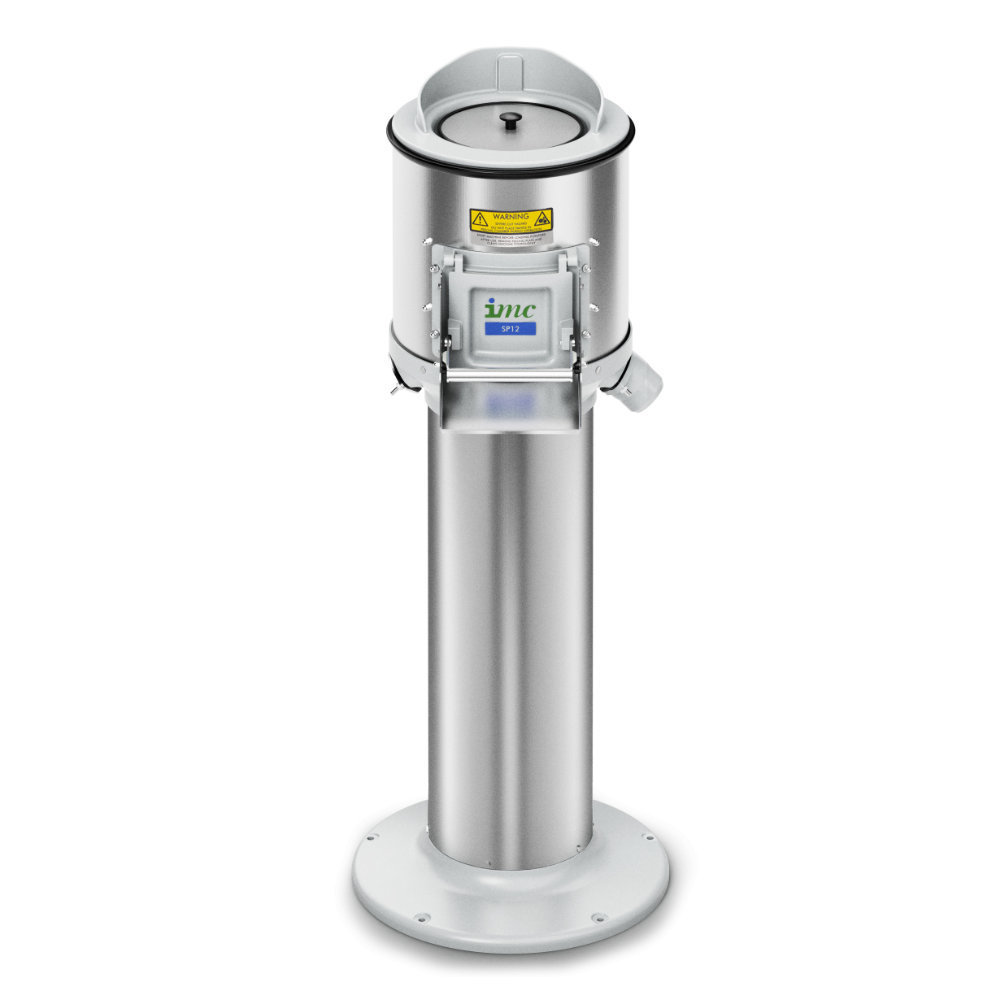

F58/903 - SP12H Floor-mounted Potato Peeler – 3 Phase – H 1400 mm – 0.37 kW

Product Model :

F58/903 - Compact and flexible, the SP12 (3PH) peeler has a high output and small footprint, making it ideal for medium and large operations with three-phase…

F58/903 - SP12H Floor-mounted Potato Peeler – 3 Phase – H 1400 mm – 0.37 kW

Product Model :

F58/903 - Compact and flexible, the SP12 (3PH) peeler has a high output and small footprint, making it ideal for medium and large operations with three-phase…

Features & Benefits Overview

  • Able to peel 12kg of potatoes in 2 minutes up to 220kg per hour
  • Upright design with small footprint, ideal for medium and large operations
  • Low pedestal for quick and easy discharge of potatoes
  • Lubricated, heavy duty gearbox makes peeling operation smooth and reliable
  • Dual position waste outlets and smooth cylinder base for quick, easy cleaning proof plate and replaceable liners for effective peeling
  • Long lasting, rust
  • Suitable for kitchens with single phase power supply
  • WRAS approved Class A air break and brass spray nozzle to prevent water escape

Full Description

With a small footprint and quiet motor, the energy-efficient SP12 (3PH) peeler is ideal for medium and large kitchens with a three-phase power supply. Offering the speed and convenience of pre-prepared products, it has the power to peel up to 12kg of vegetables in two minutes – up to 220kg per hour – saving space and time.

Simple and safe to operate, the floor-standing SP12 (3PH) has a high pedestal, allowing the unit to be emptied into a sink.

Constructed from rust-proof stainless steel, the SP12 (3PH) is robust and low maintenance, with a heavy-duty belt and pulley drive. Its corrosion-resistant cast aluminium plate has a thick grit layer to deliver effective peeling, whilst stainless steel cylinder liners can be replaced for longer life and lower cost. The smooth profile of the self-draining cylinder and the dual position waste outlets make the peeler hygienic and easy to clean.

Add on Items

We have an excellent range of model specific add on items that are guaranteed to work with this product.

Available ‘Add-On Items’ for F58/903 - SP12H Floor-mounted Potato Peeler – 3 Phase – H 1400 mm – 0.37 kW

Specifications

Here you find the product specifications and technical details for our product SP12H Floor-mounted Potato Peeler – 3 Phase – H 1400 mm – 0.37 kW

Energy Type

Electric

Installation Type

Freestanding

GTIN

5056105198802

Kilowatts

0.37

Control Type

On/Off

Product Height (mil)

1,388

Product Width (mil)

530

Product Depth (mil)

624

Product Weight (kilogram)

50.50

Professional Installation Required

Yes

Electrical Connection Type

Direct Hardwired

Electrical Watts

370

Electrical Phase

Three

Electrical Voltage

400V

Ship Weight (kilogram)

55.55

Ship Height (centimeter)

148

Ship Width (centimeter)

68

Ship Depth (centimeter)

57

Water Line Required

True

Water Connection Source Type

Water Main

Water Inlet Size

12

Water Inlet Pressure Minimum

2.70

Water Inlet Pressure Maximum

3.80

Drain Line Required

True

Drain Outlet Size

54

Motor Power (horsepower)

0.50

Drip Pan

False

Operator Safety Method

User Guide

Documents & Downloads

For more information on this product, please click on the specific link below to download the required documentation.

IMC_F58_903_AutomatedSpecSheet
IMC SPPeelerRange Peelers Manual 1
Technical Picture
