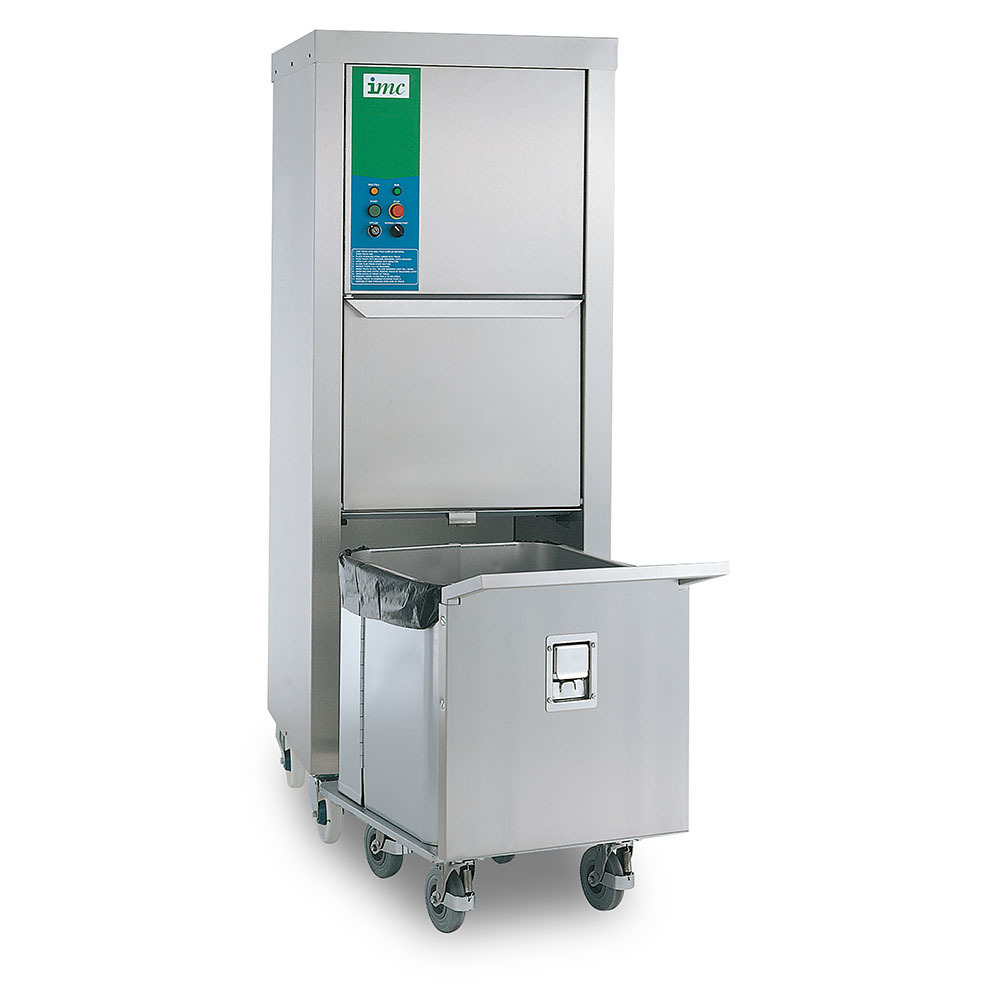

F56/500 - IP500 Waste Compactor – W 678 mm – 0.75 kW

Product Model :

F56/500 - Able to compact waste in seconds, the Impactor IP500 enables operators to cut waste volumes by up to 80%, save time and lower collection costs.

F56/500 - IP500 Waste Compactor – W 678 mm – 0.75 kW

Product Model :

F56/500 - Able to compact waste in seconds, the Impactor IP500 enables operators to cut waste volumes by up to 80%, save time and lower collection costs.

Features & Benefits Overview

  • Cuts waste volumes by up to 80% and lowers waste handling and collection costs
  • Compresses all dry waste cardboard, tins, plastic and paper
  • Powerful electro hydraulic technology enables waste to be compacted in seconds
  • Compact, easy to move unit can be conveniently located where waste is produced
  • Manufactured from stainless steel making it tough, reliable and easy to clean
  • UK 3 pin plug allows users to simply plug in and switch on

Full Description

With a 110-litre equivalent uncrushed capacity, the Impactor IP500 allows operators to cut waste volumes by up to 80%. It saves on staff time, reduces collection costs, improves hygiene standards and minimises space needed for waste storage.

The IP500 is suitable for a wide variety of operations, from small hotels and restaurants to large schools, hospitals, shops, factories and ships. From cardboard and tins, to plastic and paper, it compacts waste in seconds using powerful electro-hydraulic technology.

The unit is compact and mounted on heavy duty casters or deck feet (must be specified at time of order), so it can be conveniently located wherever waste is produced. Waste is fed via a loading chute into an integral trolley, lined with a tough, sealable plastic bag.

Manufactured from stainless steel, the IP500 is robust and reliable, as well as quick and easy to clean. It is quiet, safe and energy efficient in operation.

Add on Items

We have an excellent range of model specific add on items that are guaranteed to work with this product.

Available ‘Add-On Items’ for F56/500 - IP500 Waste Compactor – W 678 mm – 0.75 kW

Specifications

Here you find the product specifications and technical details for our product IP500 Waste Compactor – W 678 mm – 0.75 kW

Energy Type

Electric

Installation Type

Freestanding

Kilowatts

0.75

Control Type

On/Off, Rotary Control Knob

Product Height (mil)

1740.00 MIL

Product Width (mil)

678.00 MIL

Product Depth (mil)

675.00 MIL

Product Weight (kilogram)

285

Professional Installation Required

Yes

Electrical Watts

750

Electrical Phase

Single

Electrical Voltage

230V

Ship Weight (kilogram)

314.05

Ship Height (centimeter)

197

Ship Width (centimeter)

77

Ship Depth (centimeter)

73

Water Line Required

False

Drain Line Required

False

Waste Compaction Ratio (%)

80

Waste Types Processed

Dry (cardboard, tins, plastic, paper)

Equivalent Uncrushed Material (liter)

550

Drip Pan

False

Capacity Volume

110

Operator Safety Method

Interlock

Documents & Downloads

For more information on this product, please click on the specific link below to download the required documentation.

IMC_F56_500_AutomatedSpecSheet
IMC CompactorRange Compactors Manual 1
Technical Picture
